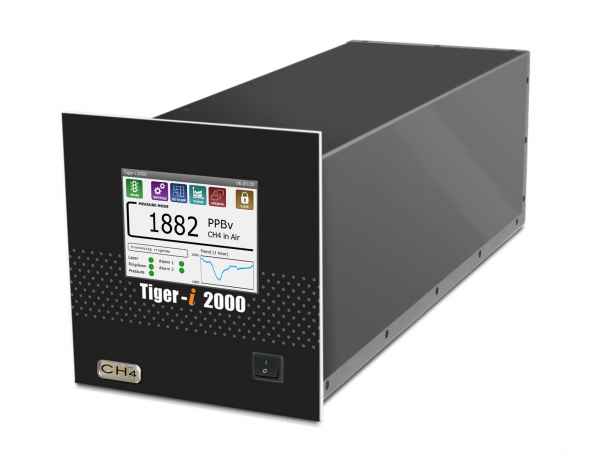

Tiger-i 2000 CH4
Methane analyzer for greenhouse gas detection and monitoring
Combat global warming at the source
The Tiger-i 2000 CH4 greenhouse gas analyzer for methane is designed for versatile use. It can measure ambient levels of CH4 with high precision over a wide range of temperatures with excellent reliability, and it can monitor emissions of greenhouse gases from various sources such as landfills, gas and oil exploration sites, refineries, and agricultural facilities. The Tiger-i 2000 helps users to easily and accurately assess their greenhouse gas emissions and implement measures to reduce global warming.
Using Tiger Optics’ Tiger-i 2000 CH4 analyzer, you can measure ambient levels of methane with parts-per-billion accuracy, drift-free stability and fast response. You’ll find our systems fast to install, exceptionally easy to use, extremely reliable, and effortless to maintain due to their built-in calibration verification. The robust design—free of moving parts—results in an analyzer that has a high mean time between failure (MTBF) and a very low cost of ownership (CoO).
A compact and user-friendly solution for monitoring ambient levels and emissions of methane, the Tiger-i 2000 CH4 offers:
- Accuracy traceable to the world’s major national reference labs
- Specificity—no moisture or other interference
- High precision at ambient or even higher levels
- Freedom from the need for span calibrations
- No periodic sensor replacement/maintenance
- Wide dynamic range and no drift
- Compact and rugged design
Applications
| Detection and Matrix | Range | LDL | Sensitivity |
|---|---|---|---|
| CH4 in Clean Dry Air (CDA) (low range) | 0 – 20 ppm | 2.0 ppb | 1.5 ppb |
| CH4 in Clean Dry Air (CDA) (high range) | 0 – 100 ppm† | 10 ppb | 7.5 ppb |
| CH4 in N2 (low range) | 0 – 20 ppm | 2.0 ppb | 1.5 ppb |
| CH4 in N2 (high range) | 0 – 100 ppm† | 10 ppb | 7.5 ppb |
| CH4 in Ambient Air (low range) | 0 – 25 ppm | See Resources Brochure | See Resources Brochure |
| CH4 in Ambient Air (high range) | 0 – 100 ppm† | See Resources Brochure | See Resources Brochure |
| †Upper range as high as 1000 ppm available on request |
| Performance | |
|---|---|
| Operating range | See Detection Capability table |
| Detection limit (LDL, 24 h peak-to-peak) | See Detection Capability table |
| Sensitivity (3σ) | See Detection Capability table |
| Precision (1σ, greater of) | ± 0.75% or 1/3 of Sensitivity |
| (equivalent to 15 ppb over 24 h at typical ambient CH4 levels) | |
| Accuracy (greater of) | ± 4% or the LDL |
| (equivalent to 80 ppb over 24 h at typical ambient CH4 levels) | |
| Speed of response | 3 minutes to 95% |
| Environmental conditions | 10°C to 40°C, 30% to 80% RH (non-condensing) |
| Storage temperature | -10°C to 50°C |
| Gas Handling System and Conditions* | |
| Wetted materials | 316L stainless steel, 10 Ra surface finish |
| Gas connections | 1/4" male VCR inlet & outlet |
| Leak tested to | 1 x 10-9 mbar l / sec |
| Inlet pressure | 0 – 15 psig (1 – 2 bara) |
| Outlet pressure | Vacuum (<10 Torr) |
| Flow rate | ∼1 slpm |
| Sample gases | Ambient air, clean dry air (CDA) and N2 |
| Gas temperature | Up to 60°C |
| Dimensions, H x W x D | |
| Standard sensor | 8.73" x 8.57" x 23.6" (222 mm x 218 mm x 599 mm) |
| Sensor rack (fits up to two sensors) | 8.73" x 19.0" x 23.6" (222 mm x 483 mm x 599 mm) |
| Weight | |
| Standard sensor | 33 lbs (15 kg) |
| Electrical | |
| Alarm indicators | 2 user programmable, 1 system fault, Form-C relay |
| Power requirements | 90 − 240 VAC, 50/60 Hz |
| Power consumption | 40 Watts max. |
| Signal output | Isolated 4–20 mA per sensor |
| User interfaces | 5.7" LCD touchscreen, 10/100 Base-T Ethernet, RS-232 |
| 802.11g Wireless (optional), Modbus TCP (optional) | |
| Patents | |
| U.S. Patent #7,277,177 | |
| *Vacuum source with >2 slpm @ 10 Torr required | |
