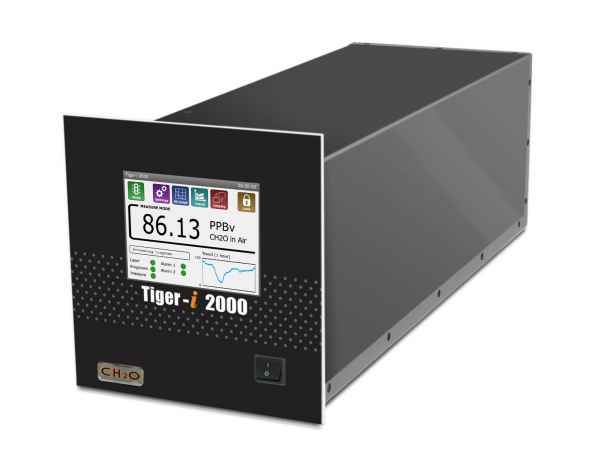

Tiger-i 2000 CH2O
Trace formaldehyde in ambient air
Formaldehyde (CH2O) is a known human carcinogen and as such the accurate and effective measurement of this pollutant in our environment is critical. Indoors, formaldehyde is present in many man-made materials such as pressed wood products, carpets, and adhesives. We are also exposed to formaldehyde when using modes of transport powered by the combustion of fossil fuels. CH2O is also a key impurity in fuel cell hydrogen, where it is responsible for the degradation of the proton exchange membrane within the fuel cell, adversely affecting performance.
Tiger Optics delivers a powerful analytical tool for the measurement of trace CH2O for diverse applications. Based on powerful Cavity Ring-Down Spectroscopy (CRDS), with a proprietary laser-locked cell, the Tiger-i 2000 is free of drift, guaranteeing consistent and reliable trace CH2O detection in ambient air. Highly specific to the target molecule, CRDS also prevents cross-interferences from distorting your measurement. Plus, there is no need to perform costly and time-consuming zero and span calibrations, saving both time and money with continuous, on-line service.
The Tiger-i 2000 CH2O gives you an unsurpassed speed of response and ease of use. In sum, the Tiger-i 2000 CH2O analyzer serves a range of applications where trace gas measurement is extremely critical, such as indoor air quality monitoring, assessing outgassing from building materials, and optimization of vehicle powertrains. The Tiger-i 2000 CH2O builds on Tiger Optics longstanding leadership for trace monitoring of critical compounds.
Designed for formaldehyde analysis in laboratory, process, and indoor air quality applictions, as well as the detection of Airbourne Molecular Contaminants (AMCs), the Tiger-i 2000 CH2O offers:
- Accuracy traceable to the world’s major national reference labs
- Freedom from the need for span calibrations
- No periodic sensor replacement/maintenance
- Parts-per-billion (ppb) detection limit
- Wide dynamic range and no drift
- Fast response
- Compact and rugged design
Applications
| Detection and Matrix | Range | LDL | Sensitivity |
|---|---|---|---|
| CH2O in Ambient Air | 0 – 70 ppm | 7 ppb | 5 ppb |
| Performance | |
|---|---|
| Operating range | See Detection Capability table |
| Detection limit (LDL, 24 h peak-to-peak) | See Detection Capability table |
| Sensitivity (3σ) | See Detection Capability table |
| Precision (1σ, greater of) | ± 0.75% or 1/3 of Sensitivity |
| Accuracy (greater of) | ± 4% or the LDL |
| Speed of response | 3 minutes to 95% |
| Environmental conditions | 10°C to 40°C, 30% to 80% RH (non-condensing) |
| Storage temperature | -10°C to 50°C |
| Gas Handling System and Conditions* | |
| Wetted materials | 316L stainless steel, 10 Ra surface finish |
| Gas connections | 1/4" male VCR inlet & outlet |
| Inlet pressure | 0 – 15 psig (1 – 2 bara) |
| Outlet pressure | Vacuum (<10 Torr) |
| Flow rate | ∼1 slpm |
| Sample gases | Ambient air, clean dry air (CDA) or N2 |
| Gas temperature | Up to 60°C |
| Dimensions, H x W x D | |
| Standard sensor | 8.73" x 8.57" x 23.6" (222 mm x 218 mm x 599 mm) |
| Sensor rack (fits up to two sensors) | 8.73" x 19.0" x 23.6" (222 mm x 483 mm x 599 mm) |
| Weight | |
| Standard sensor | 33 lbs (15 kg) |
| Electrical | |
| Alarm indicators | 2 user programmable, 1 system fault, Form C relays |
| Power requirements | 90 – 240 VAC 50/60 Hz |
| Power consumption | 40 Watts max. |
| Signal output | Isolated 4–20 mA per sensor |
| User interfaces | 5.7” LCD touchscreen, 10/100 Base-T Ethernet, RS-232 |
| 802.11g Wireless (optional), Modbus TCP (optional) | |
| Patents | |
| U.S. Patent #7,277,177 | |
| *Oil-free vacuum source required, <10 Torr ultimate vacuum, >1 m3/h pumping speed |
|
